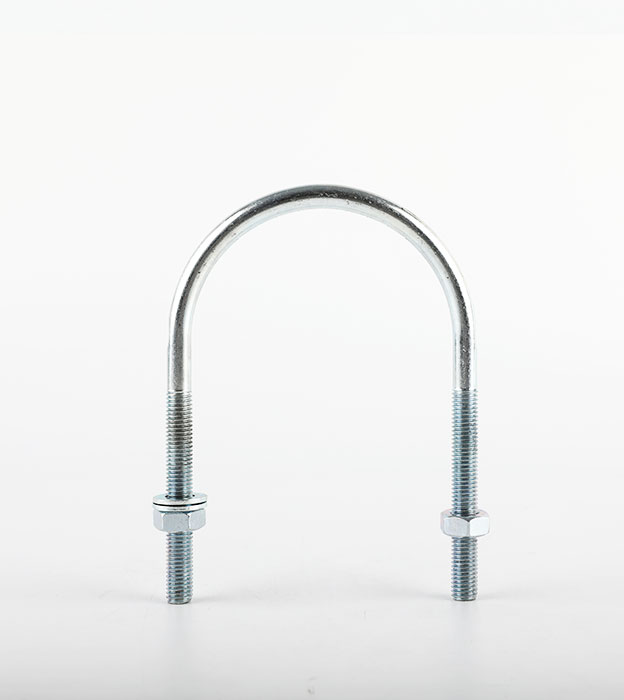

U-bolt nuts and washers are essential components used in conjunction with U-bolts to secure objects to supporting structures

U-bolt nuts and washers are essential components used in conjunction with U-bolts to secure objects to supporting structures. These nuts and washers play a crucial role in ensuring a secure and even distribution of loads. Here are the key characteristics of U-bolt nuts and washers:

U-Bolt Nuts:

Threaded Fasteners: U-bolt nuts are threaded fasteners designed to be screwed onto the threaded ends of U-bolts. They are used to secure the U-bolt in place by applying tension.

Material Compatibility: U-bolt nuts are typically made from the same material as the U-bolt itself, ensuring compatibility and preventing galvanic corrosion, which can occur when dissimilar metals are in contact.

Locking Features: In some applications, U-bolt nuts may have locking features such as nylon inserts, serrations, or prevailing torque designs. These features help prevent the nuts from loosening due to vibration or other factors.

Hexagonal Shape: Most U-bolt nuts have a hexagonal (six-sided) shape, allowing for easy tightening with a wrench or socket.

Size and Thread Type: U-bolt nuts come in various sizes to match the threaded ends of the U-bolt they are paired with. The thread type should match that of the U-bolt for a secure fit.

Torque Requirements: Proper torque should be applied when tightening U-bolt nuts to ensure a secure connection without over-tightening, which could potentially damage the U-bolt or the object being secured.

U-Bolt Washers:

Load Distribution: U-bolt washers are used to distribute the load evenly across the surface of the object being secured. They help prevent point loading, which can cause damage to the object or the U-bolt itself.

Material and Type: U-bolt washers are typically made from materials that can withstand the intended loads and environmental conditions. Common materials include steel and stainless steel. They can be flat washers or spring washers (also known as lock washers).

Flat Washers: Flat washers are the most common type used with U-bolts. They have a flat, circular shape and are placed under the nut and against the surface of the object to provide an even load distribution.

Spring Washers: Spring washers, or lock washers, have a spring-like design and are used to create tension or preload in the U-bolt assembly. They help prevent loosening due to vibration but are not always necessary depending on the application and torque requirements.

Size and Dimensions: The size and dimensions of U-bolt washers should match the U-bolt and nut sizes to ensure proper fit and load distribution.

Corrosion Resistance: Like U-bolts and nuts, U-bolt washers can be coated or made from materials that offer corrosion resistance to protect against rust and degradation in harsh environments.

In summary, U-bolt nuts and washers are integral components in U-bolt assemblies, ensuring a secure and evenly distributed load while preventing loosening due to vibration or other factors. Their materials, sizes, and designs are chosen to match the specific application and environmental conditions in which they are used. Proper installation and torque application are essential for a safe and effective U-bolt assembly.
